| Color |
Metallic Black
|

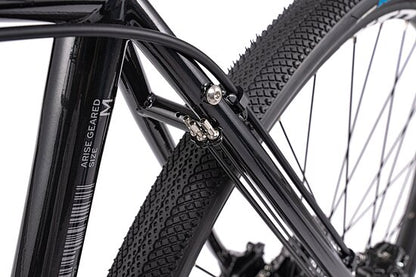

| Frame |
4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Fork |
4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |

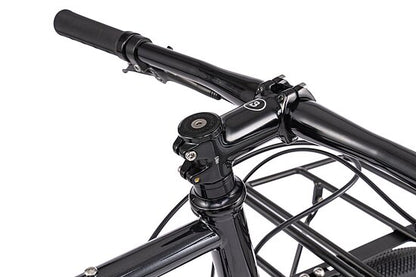

| Handlebar |
BOMBTRACK ORIGIN flat bar, 31.8 mm, 8° backsweep |
| Grips |
BOMBTRACK SCROLL grips |
| Stem |
BOMBTRACK ROAM forged aluminium stem, -7° |
| Headset |
NECO H282 sealed external aheadset, 1.1/8'' |
| Levers |
SHIMANO BL-M200 hydraulic brake levers |
| Shifter |
MICROSHIFT ADVENT SL-M819-R Shifter 1 x 9 |

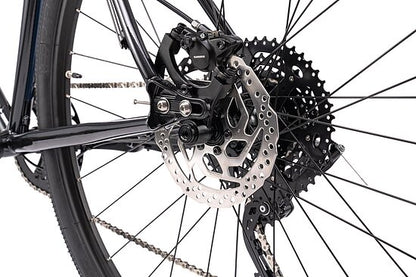

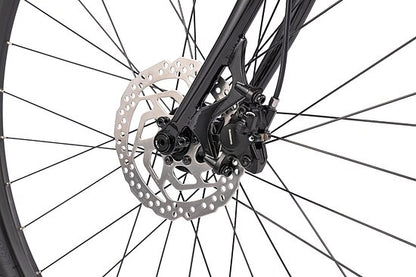

| Brakes |
SHIMANO BR-MT200 post mount hydraulic disc brake with 160 mm rotors |

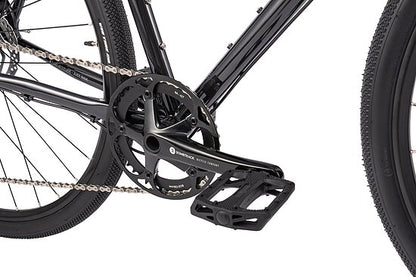

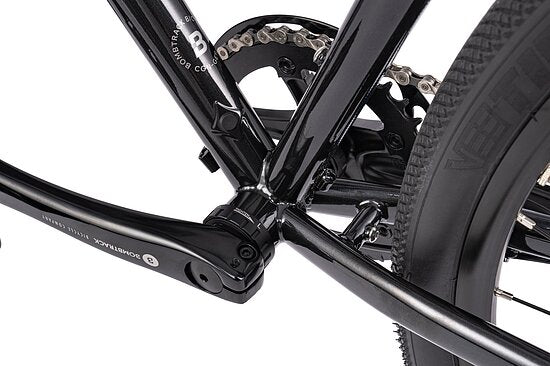

| Crankset |
BOMBTRACK TAF19 aluminium crank, 24 mm spindle |
| BB |
BSA sealed BB, external cups |
| Pedals |
WELLGO B109N flat pedal |
| Chain |
KMC X9 chain, 1/2'' x 11/128'', 114L |
| Chainring |
BOMBTRACK RIDGE aluminium chainring, narrow-wide,
42 T, incl. chainguard |
| Cassette |
MICROSHIFT ADVENT CS-H093 9-speed, 11 - 42 T |
| Front derailleur |
- |
| Rear derailleur |
Microshift ADVENT RD-M6195M wide range, clutch |
| Front hub |
BOMBTRACK ARC sealed hub, 6-bolt disc |
| Rear hub |
BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Through axle |
12 x 100 mm / 12 x 142 mm |
| Front rim |
WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim |
WTB ST i19 double wall, TCS 2.0, 32h |
| Saddle |
BOMBTRACK FUZZ |
| Seat post |
BOMBTRACK BEECH 27.2 mm x 315 mm |
| Seat clamp |
BOMBTRACK ORIGIN forged aluminium seat clamp, 29.8 mm |
| Front tire |
XS - S VEE TIRE SPEEDSTER 38-584 /
M - XL VEE TIRE SPEEDSTER 40-622 |
| Rear tire |
XS - S VEE TIRE SPEEDSTER 38-584 /
M - XL VEE TIRE SPEEDSTER 40-622 |
| Fender |
- |

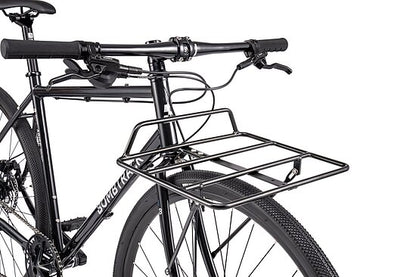

| Rack |
BOMBTRACK DECK frontrack, aluminium |
| Kickstand |
- |
| Light |
- |
| Weight |
12.6 kg (size M) |
| Weight frameset |
2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight |
120 kg incl. luggage |
| ASTM riding condition |
2 |
